CNC Series

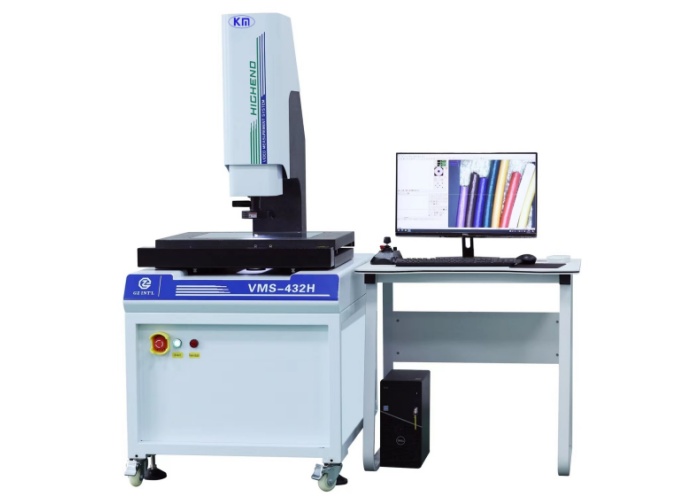

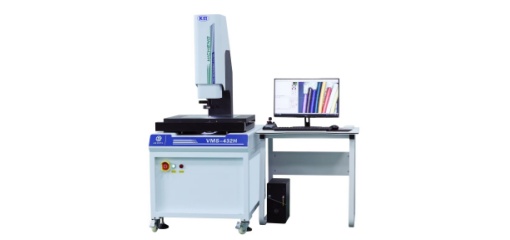

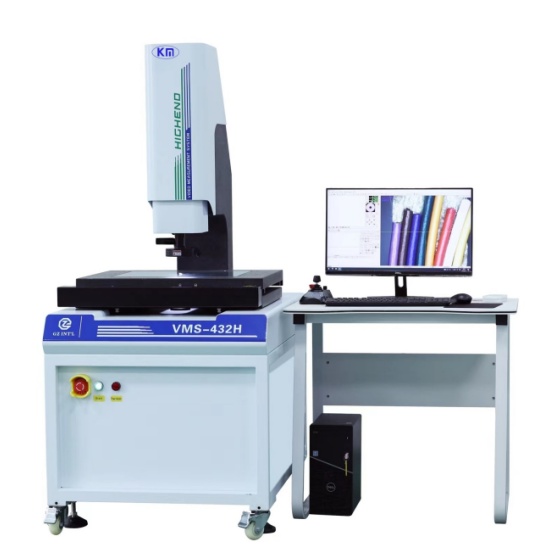

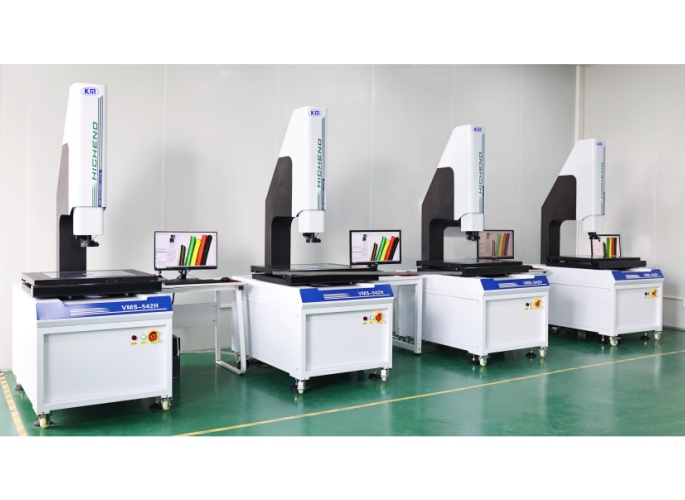

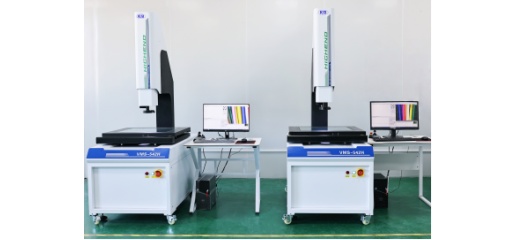

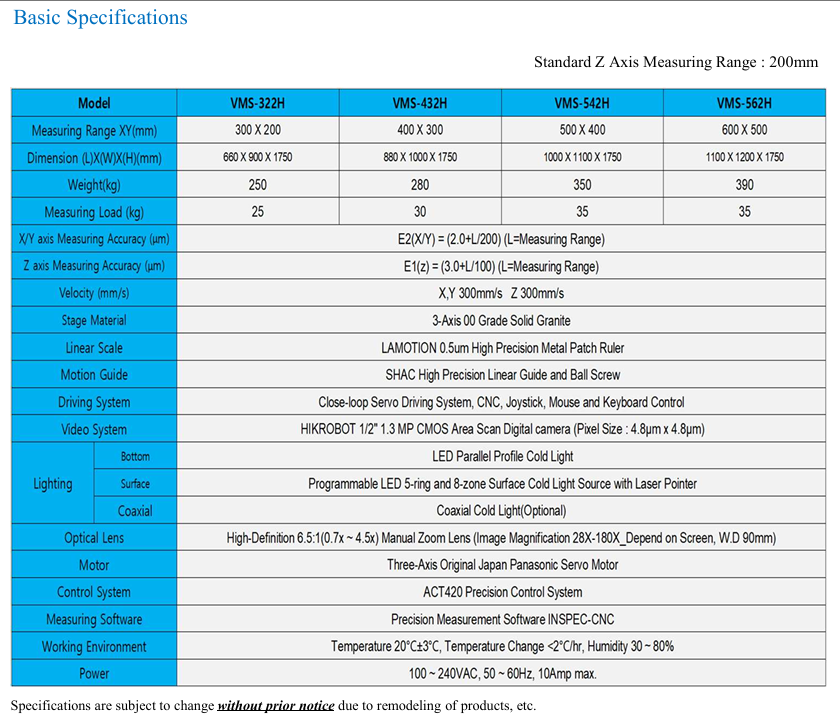

Measuring Range (mm) • VMS 322H : 300 x 200 • VMS 432H : 400 x 300 • VMS 542H : 500 x 400 • VMS 562H : 500 x 600 • Standard Z axis measuring range : 200

Full-size high-precision high-configuration, four-axis automatic (X, Y, Z, zoom)

Suitable for the pursuit of superior quality and higher inspection requirements for product measurement

Z-axis can optionally be equipped with spectra, lasers, probes, etc.

Send Email

Chat Now

Share With:

Introduction

Key Features
• Collision Mitigation System(CMS)*
• Precision Auto focus function for Measure Height
• Programmable optical and digital zoom.
• High resolution digital camera with high image quality
• Highly stable 00 grade granite structure
• High resolution linear encoder
• Precision linear guide
• Advanced LED light sources
• Auto edge detection
• Auto focus function (Measure Height)

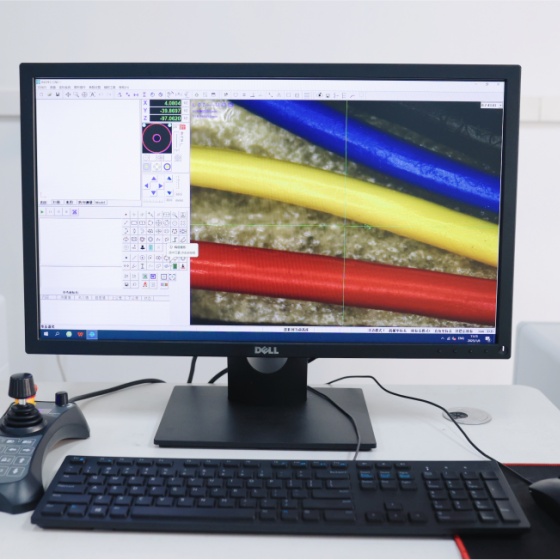

• Easy to use software
• Accuracy : E2xy = (2.0 + L/200) μm
• Resolution : 0.5μm
• Manual 6.5:1 Zoom Lens : 0.7x ~ 4.5x (Image Magnification : 28x ~ 180x)
• Back light : LED Parallel profile cold light

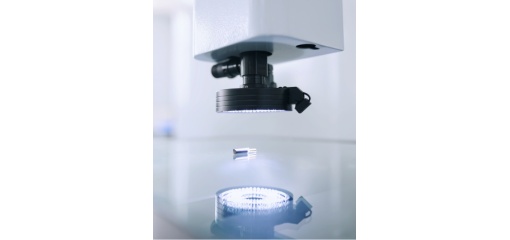

• Surface light : LED 5-ring, 8-zone cold light with Laser pointer

Our Unique Support (Optional)
• Rational VUE Software
• Coaxial light • Motorized 6.5:1 Zoom Lens : 0.75x ~ 4.5x (Image Magnification : 28x ~ 180x)
• Motorized 12.5:1 Zoom Lens: 0.58x ~ 7.5x (Image Magnification : 18.5x ~ 238x)

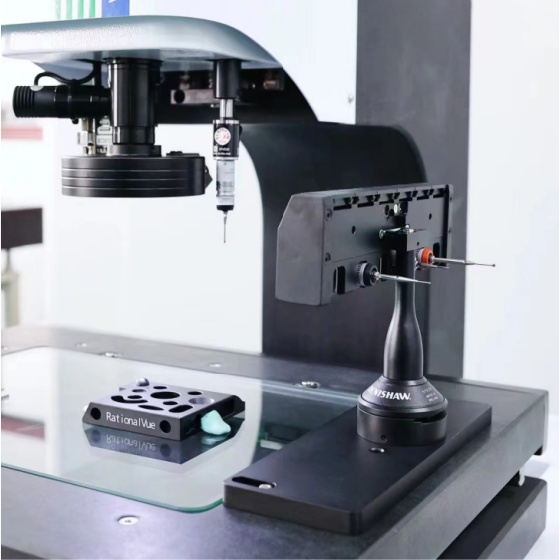

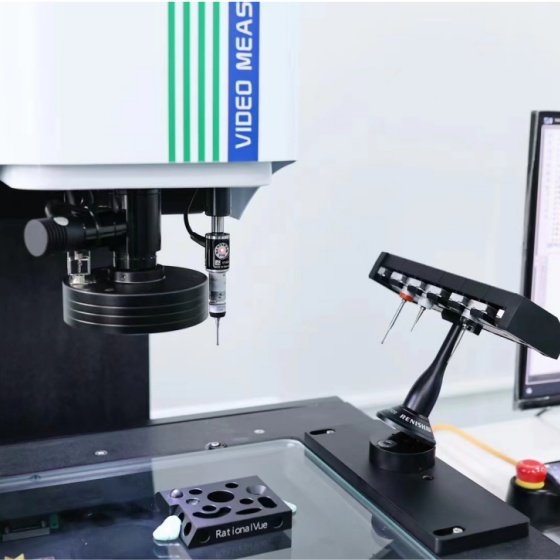

• Touch Probe, Laser Probe

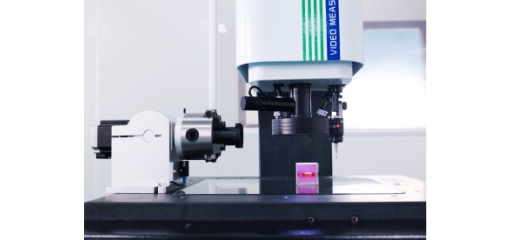

• Horizontal Rotary Unit (Max.Ø80mm)
• Z-axis Reach to 500mm
• Collision mitigation system(CMS) (Collision mitigation system(CMS) is an advanced operator-assistance system designed to prevent or reduce the severity of a collision
