Your Position: Home > Products > CMM & VMM > Video Measuring Machine
High resolution digital camera with high image quality
Z-axis can optionally be equipped with spectra, lasers, probes, etc.
Suitable for the pursuit of superior quality and higher inspection requirements for product measurement
High resolution digital camera with high image quality
Z-axis can optionally be equipped with spectra, lasers, probes, etc.
Suitable for the pursuit of superior quality and higher inspection requirements for product measurement

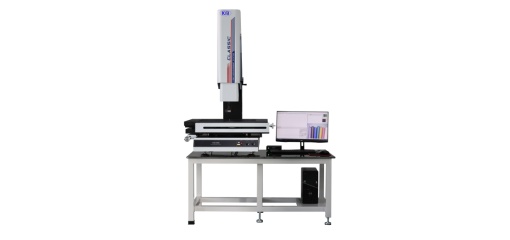

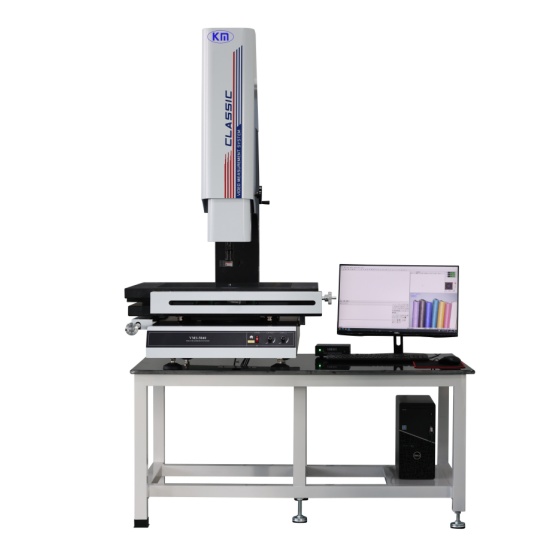

Manual Series

Measuring Range (mm) • VMS 2010 : 200 x 100 • VMS 2515 : 200 x 150 • VMS 3020 : 300 x 200 • VMS 4030 : 400 x 300 • VMS 5040 : 500 x 400 • VMS 6050 : 600 x 500 • Standard Z axis measuring range : 200
Full-size high-precision high-configuration, four-axis automatic (X, Y, Z, zoom)
Z-axis can optionally be equipped with spectra, lasers, probes, etc.
Suitable for the pursuit of superior quality and higher inspection requirements for product measurement
Send Email
Chat Now
Introduction
Features
Parameters
Related
Inquiry
Introduction
Key Features
• Programmable optical and digital zoom
• High resolution digital camera with high image quality
• Highly stable 00 grade granite structure
• High resolution linear encoder
• Precision linear guide
• Advanced LED light sources
• Auto edge detection
• Easy to use software
• Accuracy : E2xy = (2.5 ~ 3.0 + L/200) μm
• Resolution : 0.5μm
• Manual 6.5:1 Zoom Lens : 0.7x ~ 4.5x ( Image Magnification : 22x ~ 140x)
• Back light : LED Parallel profile cold light
• Surface light : LED ring cold light with Laser pointer

Our Unique Support (Optional)
• Coaxial light
• Touch Probe
• Z-axis Reach to 400mm


Philosophy
Good quality
Better Service
Win-win cooperation

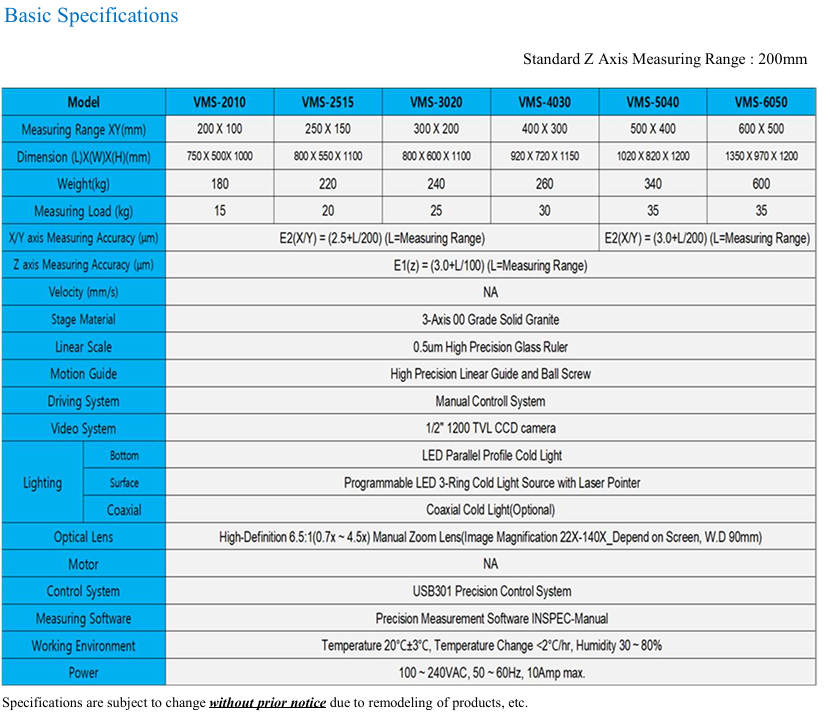

Technical Specification
Related Recommended Products
Cutter Measuring Machine
The PG-2000E cutter measuring instrument uses a 500W high-definition color digital camera to detect various tool graphic sizes, thereby improving the accuracy of tool measurement. By using powerful size measurement software, it is possible to quickly measure the front angle, back angle, helix angle, backlash angle of the forming milling cutter, and detect various cutting tools such as round nose cutters and ball cutters. The software comes with contour tracking and scanning function, with contour setting and size comparison function.
Learn More
Cutter Measuring Machine

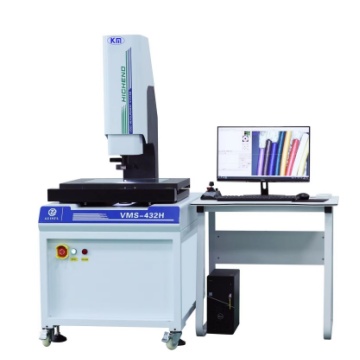

CNC Series
