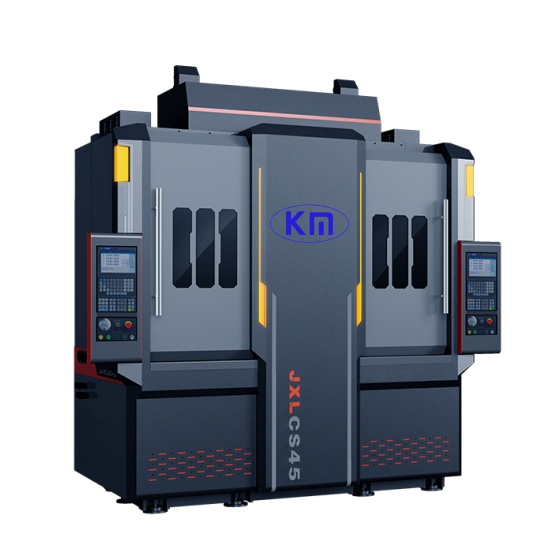

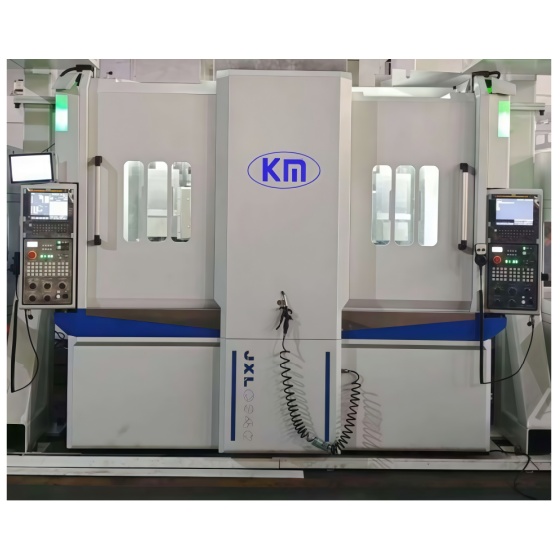

JXLC45D Double Spindle Turning Machine

Machining diameter: 400mm (inner holes within 300mm)

Maximum machining height: 300mm

Spindle speed: 2500 rpm

Send Email

Chat Now

Share With:

JXLC45D Double Spindle Turning Machine

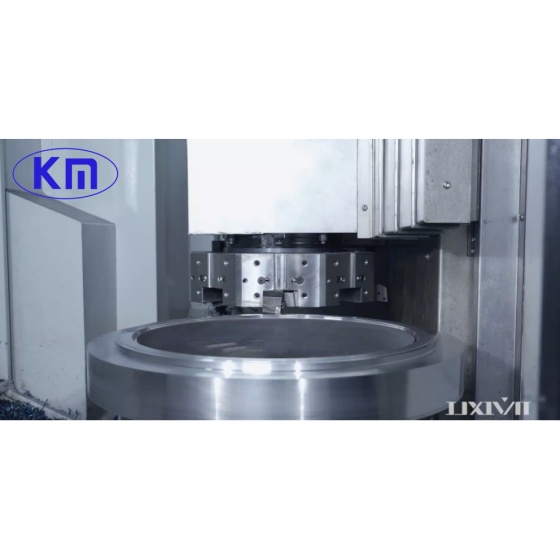

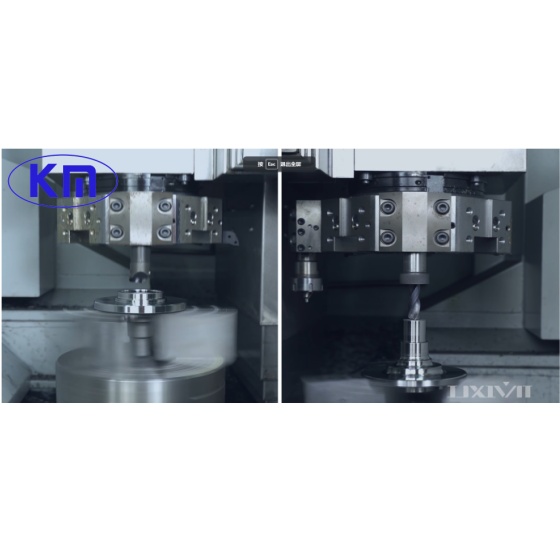

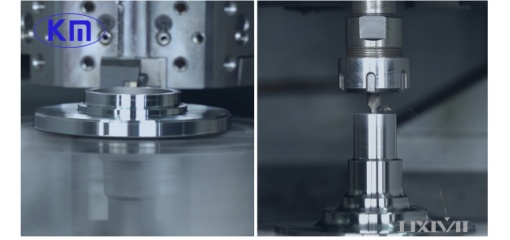

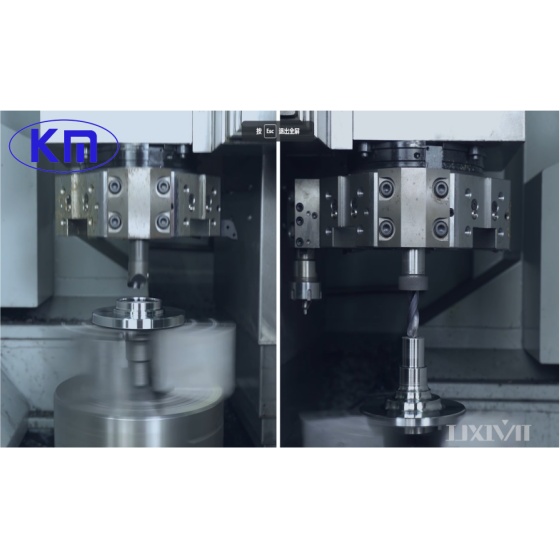

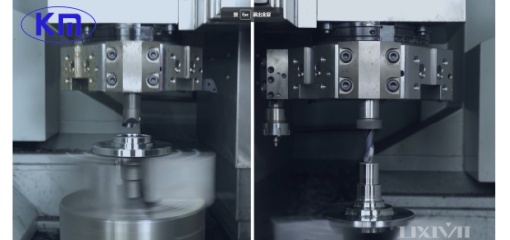

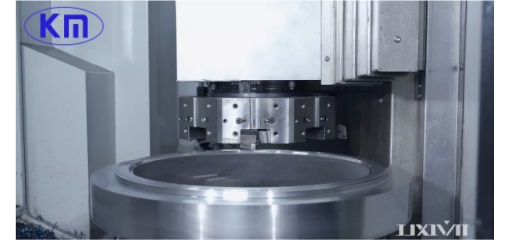

It is suitable for cutting and processing internal and external cylindrical surfaces, conical surfaces, arc surfaces, end faces, grooving, chamfering, threads (metric and inch threads, tapered threads, end face threads), as well as drilling, milling, reaming, and boring of various disc and shell parts. This machine tool has greater advantages in the processing of automotive parts, disc gears, small motor industries, motor housings, and disc parts.

Features:

Site savings of 70%, labor reduction of 50%

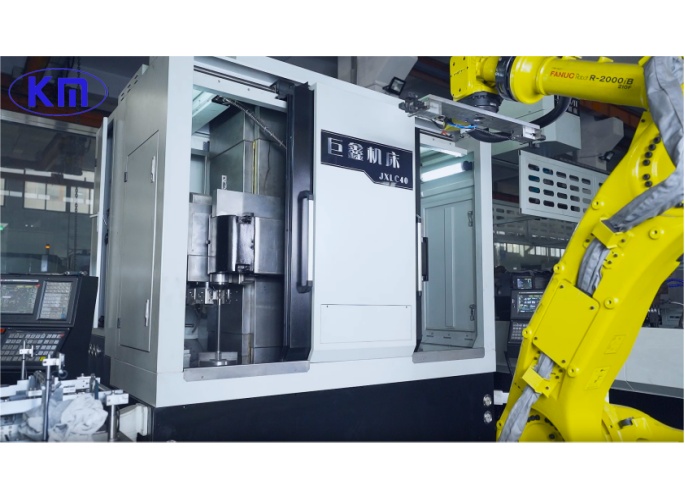

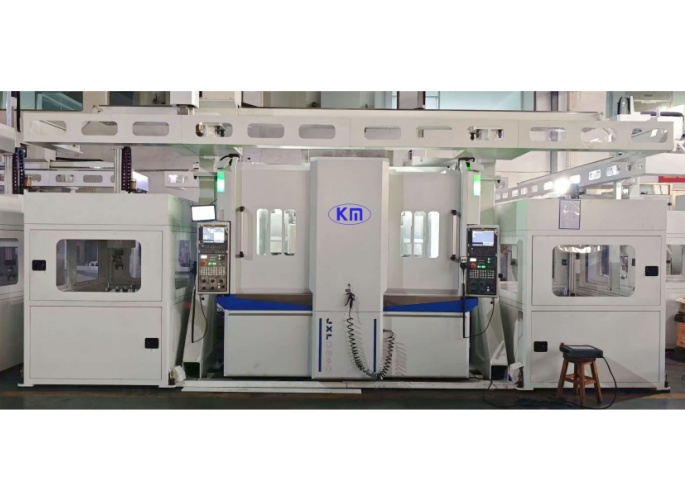

Joint robot link automation efficiency increased by 40%

Increases cutting rigidity by 50%, and saves 50% of labor

Technical Parameters

Processing Parameters	Maximum workpiece height		mm	300（Bore internal hole 300）
	Maximum rotating diameter		mm	630
	Maximum turning diameter		mm	400（Swing Diameter 450）
	Maximum turning allowance		mm	One side 5mm diameter 300
Main Axis	Range of Spindle Speed		mm	50-2500 RPM
	Number of spindle speeds		mm	Stepless
	Chuck	Hydraulic chuck	A2-8	12 inches medium solid
		Hydraulic cylinder	A2-8	Standard
	Main motor power		kW	11/15
Feed Motion	Z Maximum shaft travel		mm	600
	X Maximum axis travel		mm	250
	Fast moving speed X/Z		m/min	10/15
	Minimum input unit X/Z		mm	0.001
	Driving X/Z		N.m	11/15
Turret	Cutter Turret Station			12
	Turning tool body size		mm	25×25
	Turret switch tool time		s	1.5
	Turret maximum drilling			φ16*0.2
	Tower maximum tapping			M14*2
Machine Dimension (L×W×H)			mm	2300×1600×2350
Weight			Kg	7500
