Key Features
• Collision Mitigation System(CMS)*
• Precision Auto focus function for Measure Height
•Programmable optical and digital zoom
• High resolution digital camera with high image quality
• Highly stable 00 grade granite structure • High resolution linear encoder
• Precision linear guide
• Advanced LED light sources
• Auto edge detection

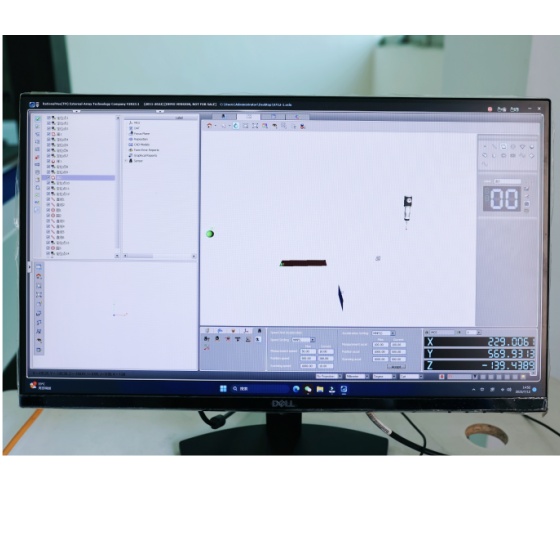

• Easy to use software
• Accuracy : E2xy = (2.5 ~ 5.0 + L/200) μm
• Resolution : 0.5μm
• Motorized 6.5:1 Zoom Lens : 0.7x ~ 4.5x (Image Magnification : 28x ~ 180x)
• Coaxial light
• Back light : LED Parallel profile cold light

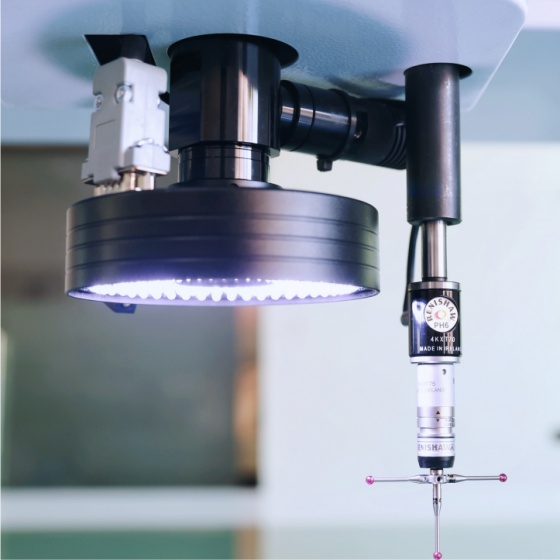

• Surface light : LED 5-ring, 8-zone cold light with Laser pointer
Our Unique Support (Optional)
• Rational VUE Software
• Motorized 12.5:1 Zoom Lens: 0.58x ~ 7.5x (Image Magnification : 18.5x ~ 238x)

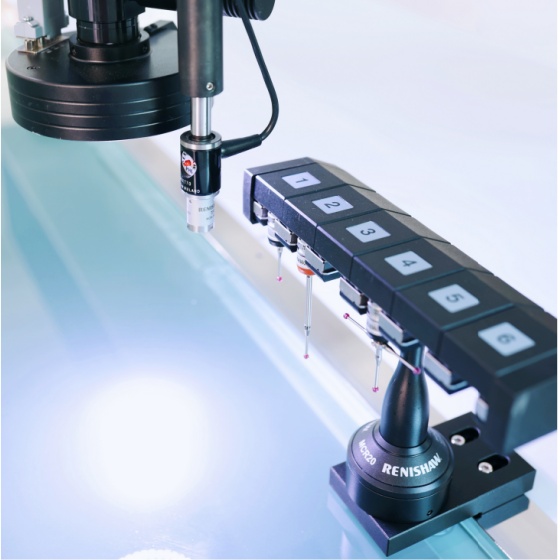

• Touch Probe, Laser Probe • Horizontal Rotary Unit(Max.Ø80mm)
• Z-axis Reach to 500mm
• Collision mitigation system(CMS) (Collision mitigation system(CMS) is an advanced operator-assistance system designed to prevent or reduce the severity of a collision)
• Platen Fixture
