● Special features: automated matching possible
● Weight: 4.5T
● Overall dimensions (L*W*H) : 2.8m*2.3m*1.9m

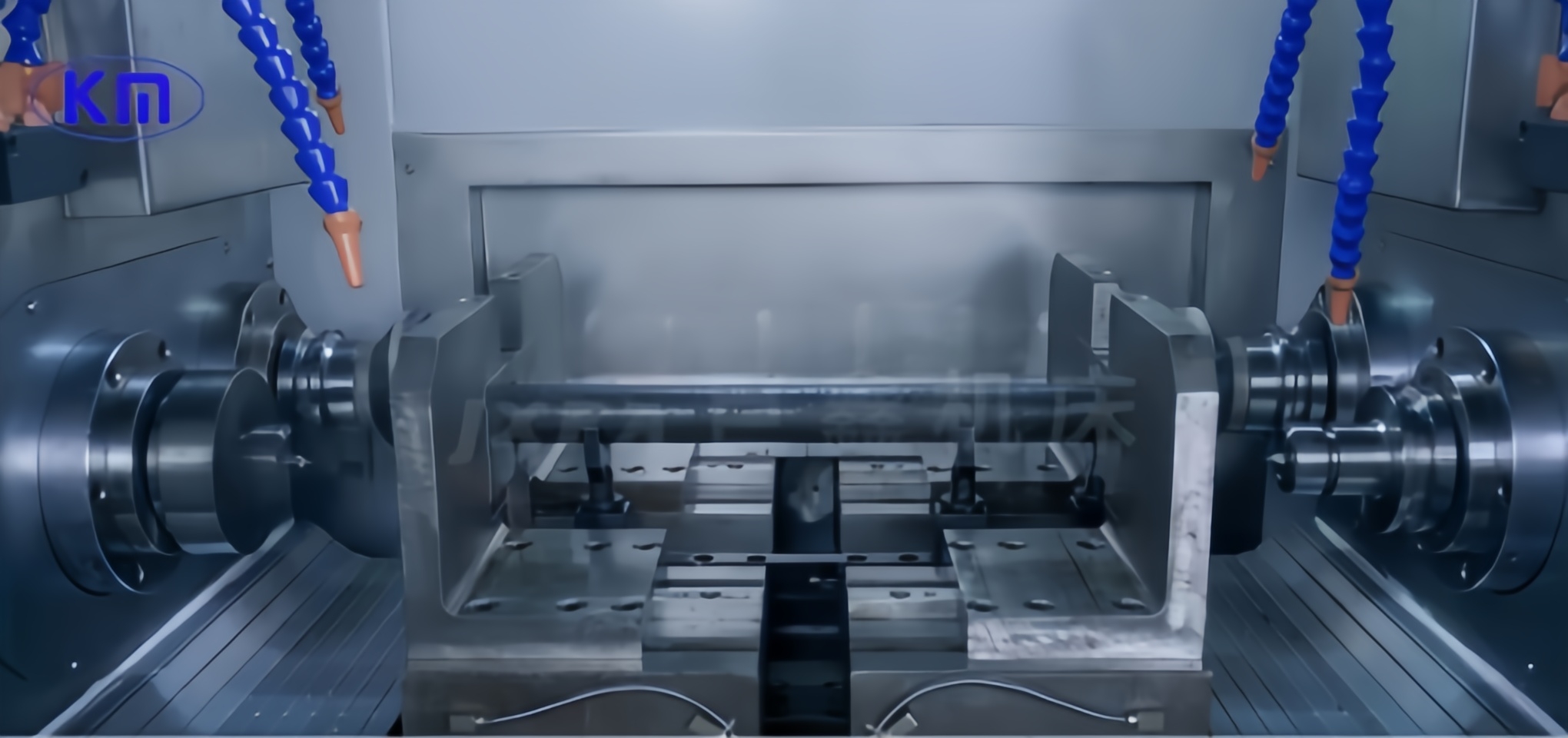

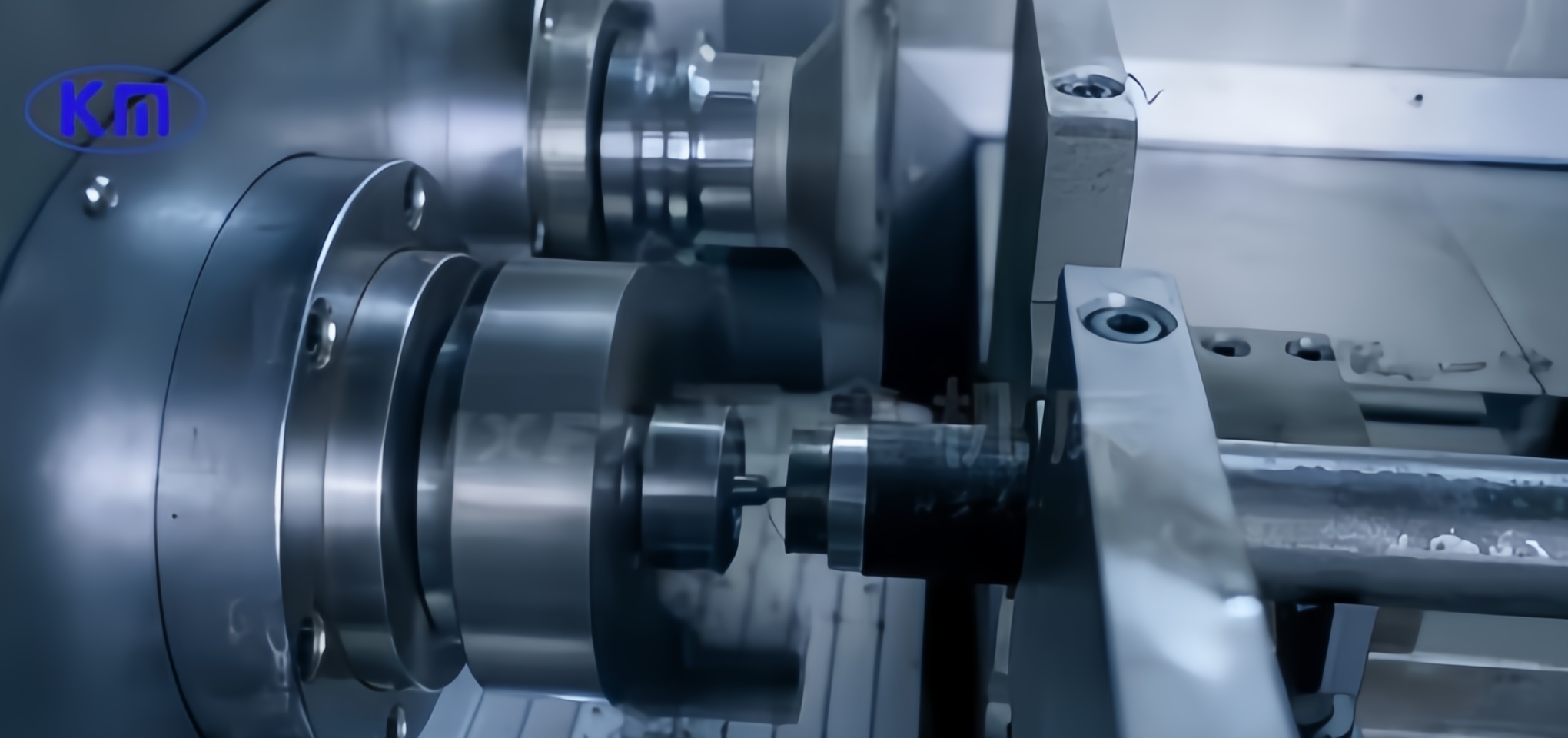

● Key features: 1. Punch the center hole on the end face of the cage milling; 2. Double-station milling center hole machine tool; 3. Crankshaft milling center hole milling positioning surface combination bed; 4. Milling end face, punching center hole, drilling and tapping, sleeve outer circle, fast U drilling, boring, chamfering and other multi-functional modular c
| Technical parameters | Unit | KPD800 | Remark |
| Machining diameter range | mm | φ20-90 | Modifiable |
| Machining length range | mm | 300-800 | Modifiable |
| Center hole model specifications | mm | Type A/B/C/R | φ≥2.5 |
| Special function milling, drilling, tapping | mm | M3-20 | - |
| Maximum one-sided milling | mm | 5 | Standard round bars |
| Spindle speed range | r/min | 0-2000 | |
| Machine tool control mode | Beijing KND / Juxin System / Guangzhou CNC / Siemens / Fanuc / other CNC systems | Available Options | |
| Machine tool total power | Kw | 15/25 | |
