● Special features: automated matching possible
● Weight: 6.5T
● Overall dimensions (L*W*H): 2.8m*2.3m*1.9m
● Main functions: milling and punching, milling, drilling and tapping combination, milling and boring, powerful U-drilling, multi-function module combination.

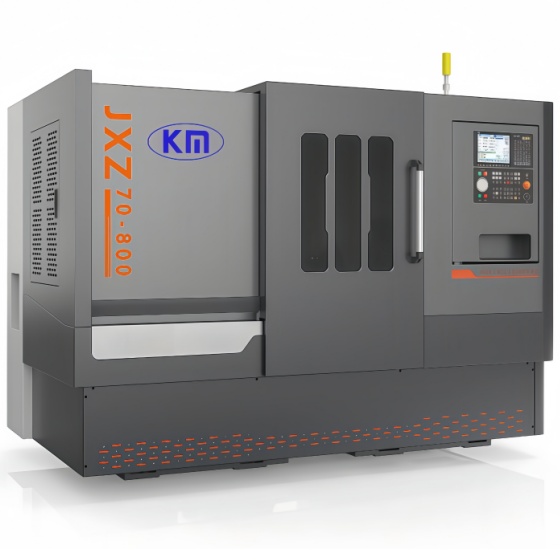

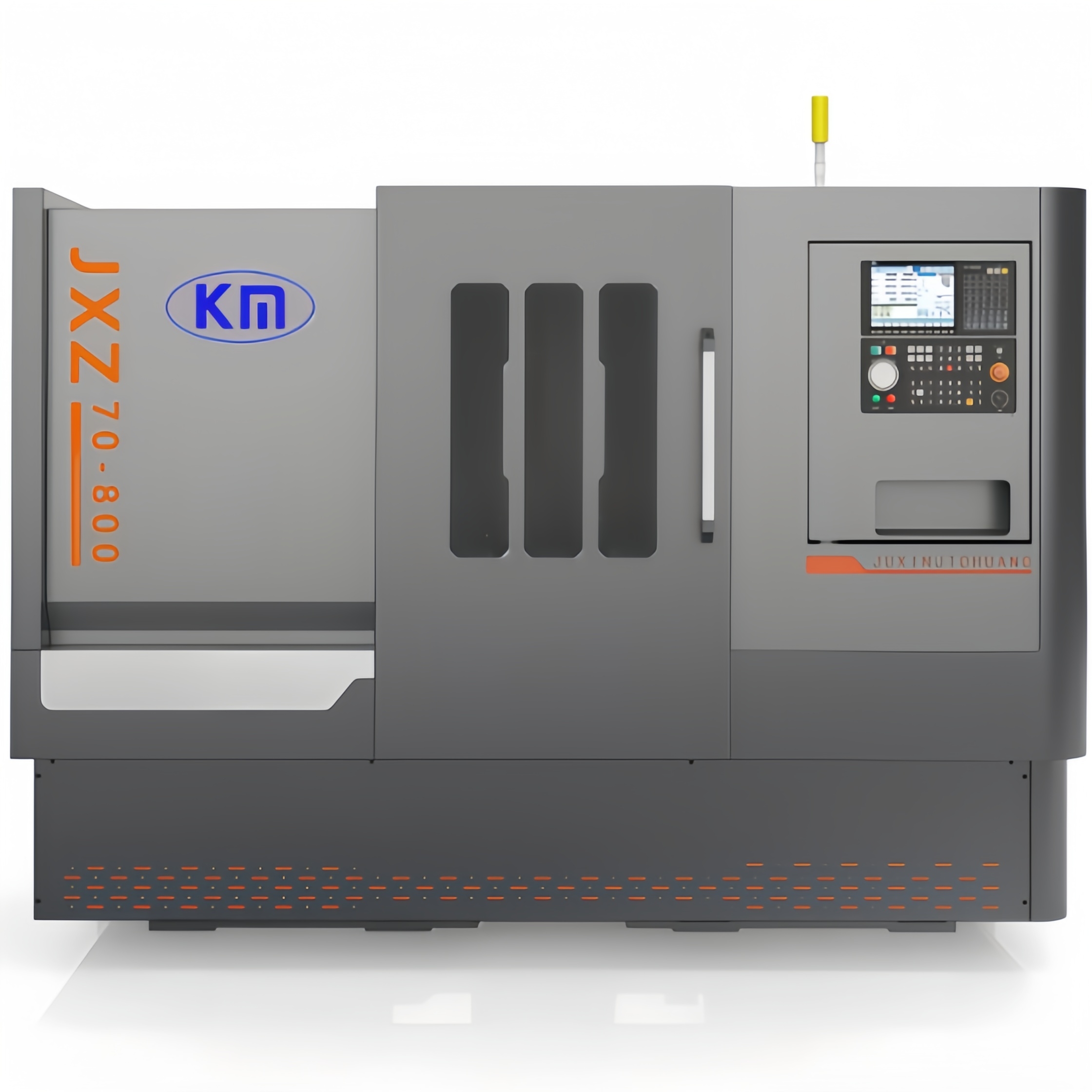

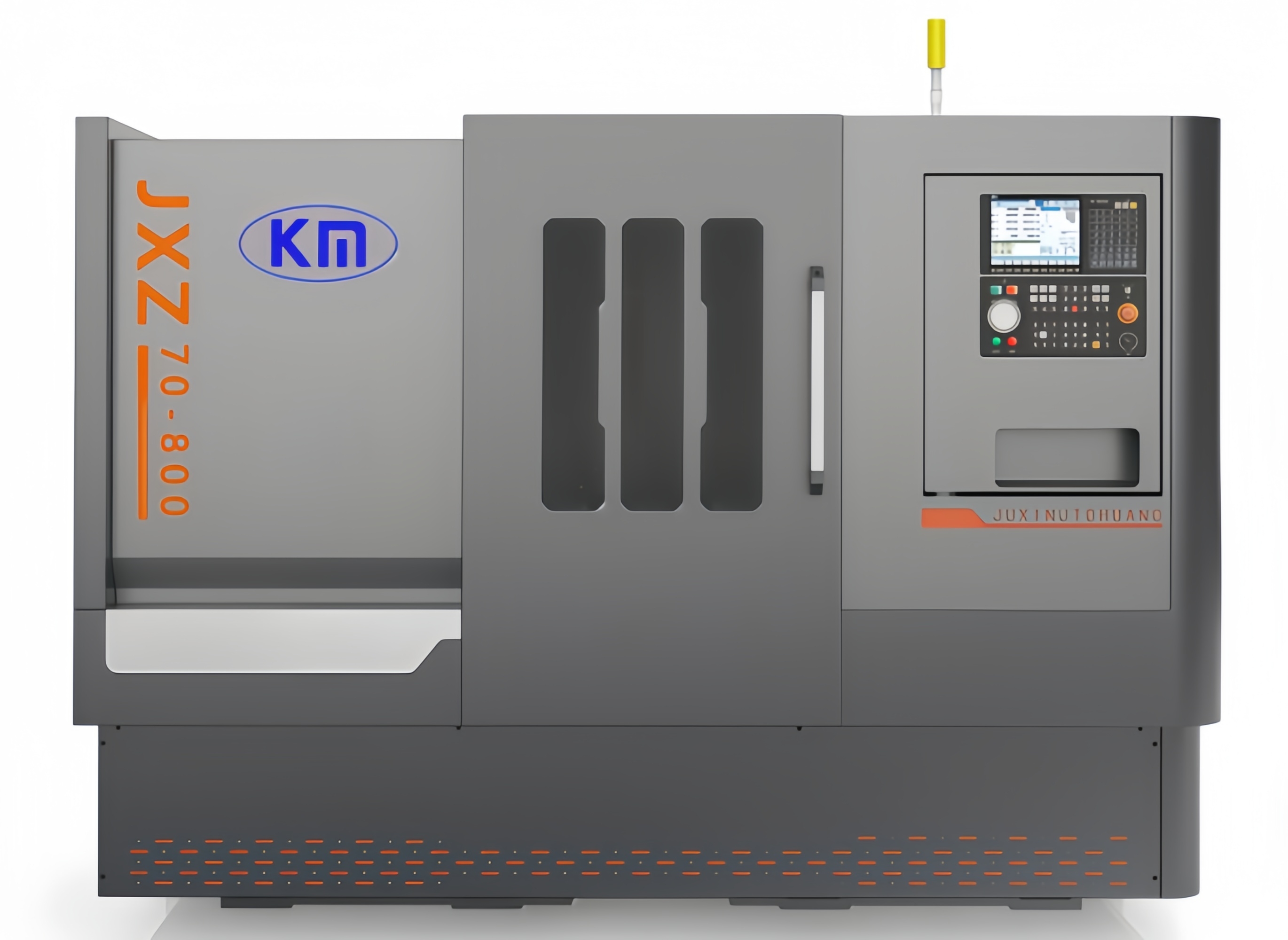

| Technical parameters | Unit | JXZ70-800 | Remark |
| Machining diameter range | mm | φ20-70 | Modifiable |
| Machining length range | mm | 300-800 | Modifiable |
| Center hole model specifications | mm | Type A/B/C/R | φ≥2.5 |
| Special function milling, drilling, tapping | mm | M3-20 | - |
| Maximum one-sided milling | mm | 5 | Standard round bars |
| Spindle speed range | r/min | 0-2000 | |
| Machine tool control mode | Beijing KND / Juxin System / Guangshu / Siemens / Fanuc / other CNC systems | Available Options | |
| Machine tool total power | Kw | 15/25 | |
