● Special features: automated matching possible
● Weight：5T
● Overall dimensions (L*W*H)：2.8m*2.3m*1.9m

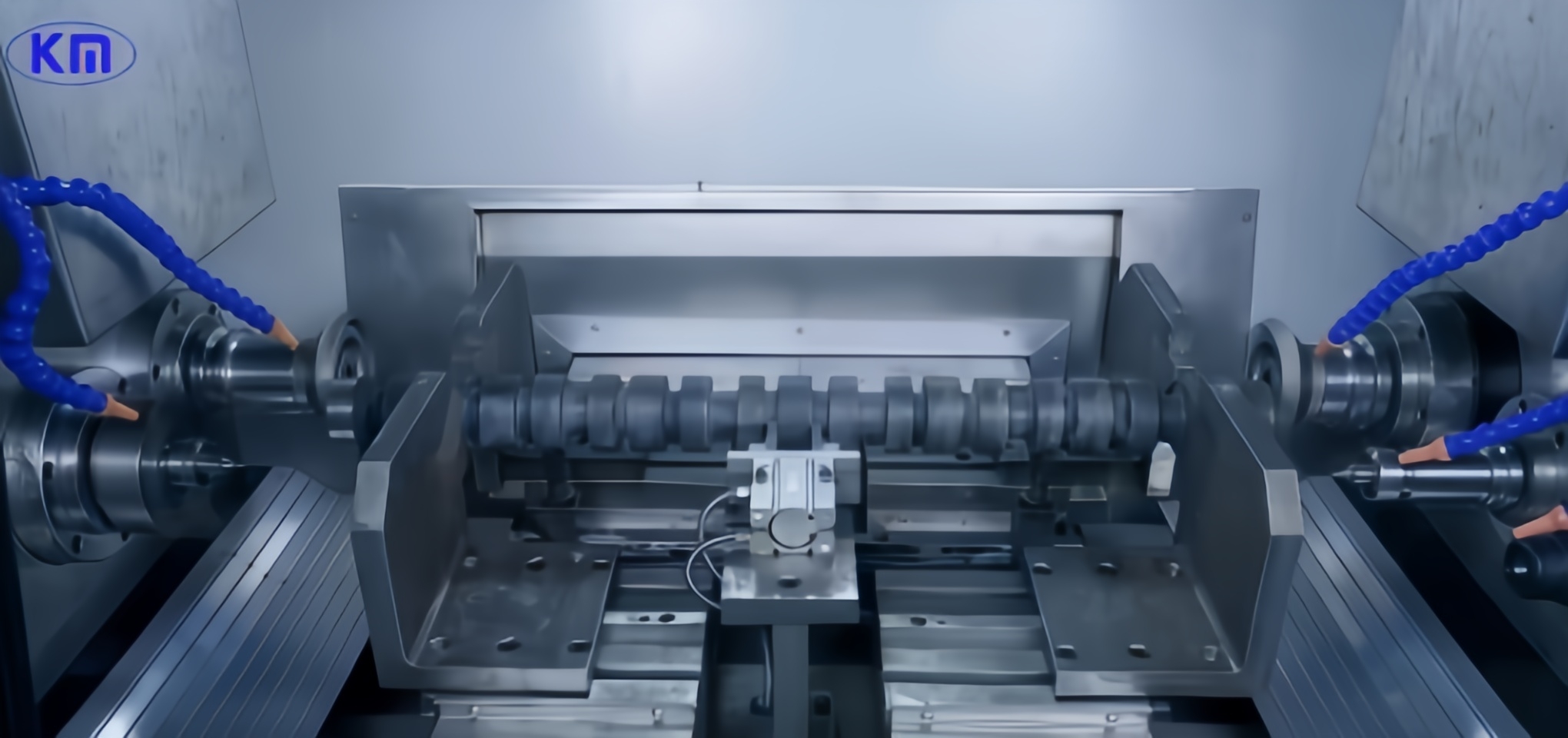

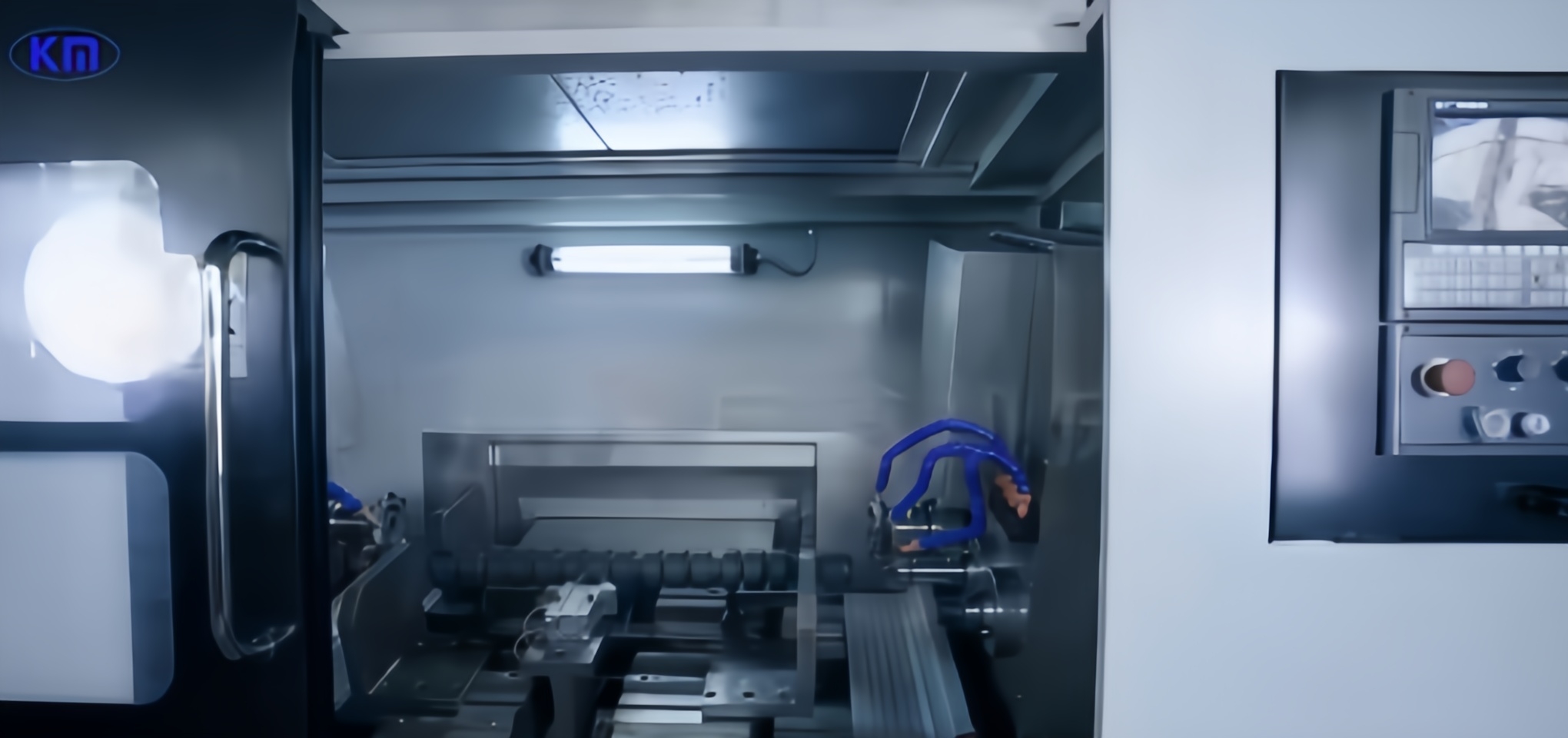

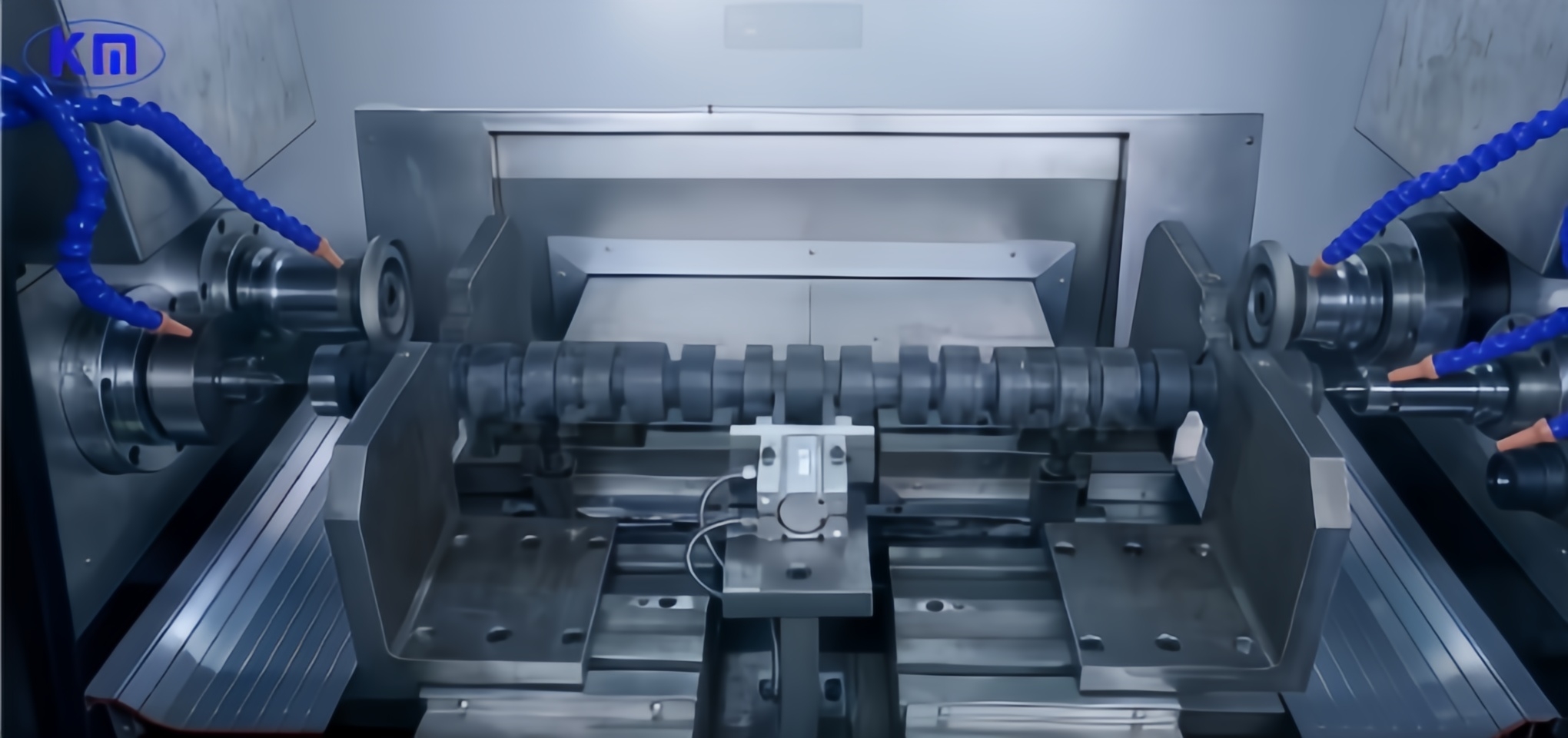

● Main functions: 1, crankshaft milling center hole milling positioning surface combination bed; 2, milling end face, playing center hole, drilling and tapping, set of turning external round, fast U drilling, boring, chamfering and other multifunctional modular combination.

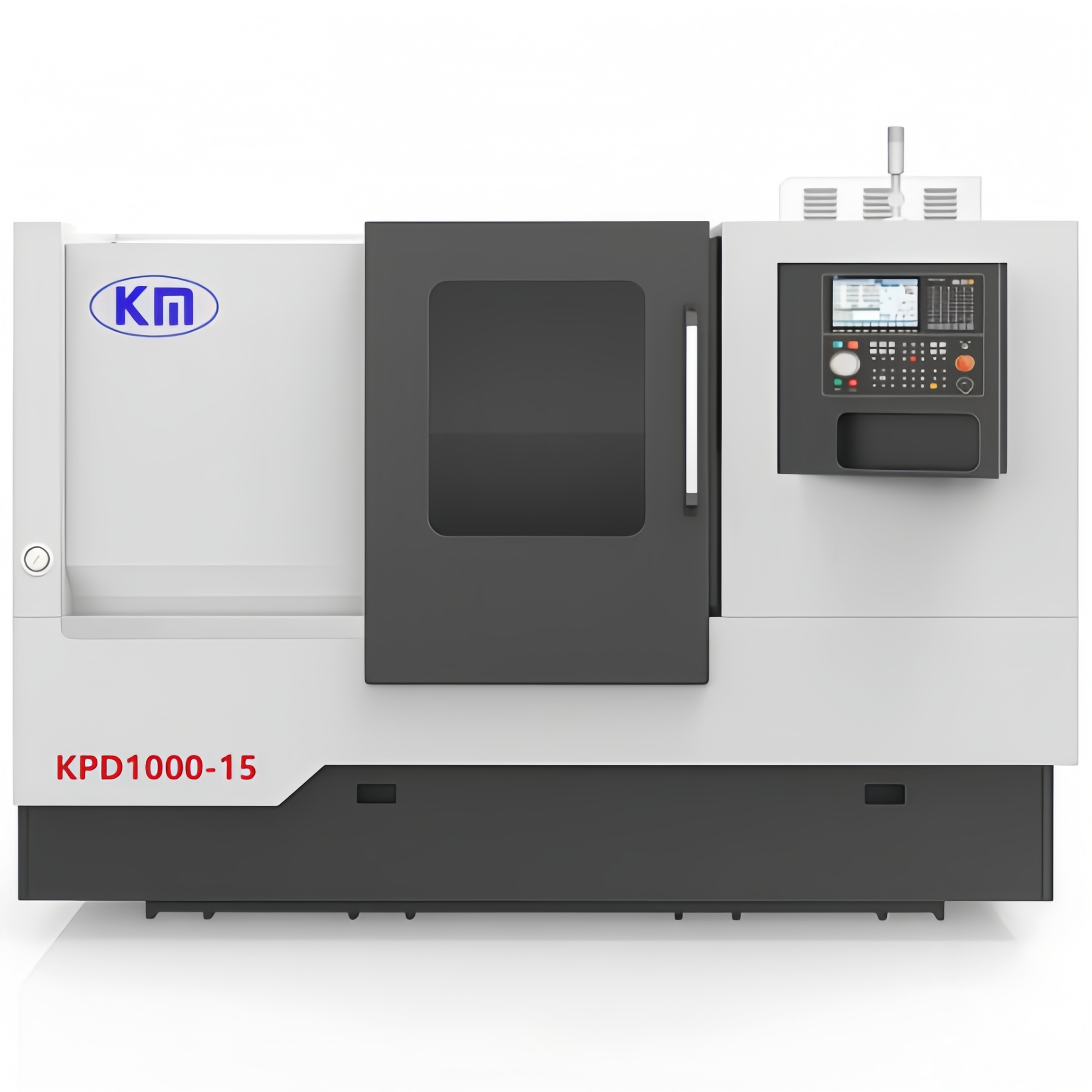

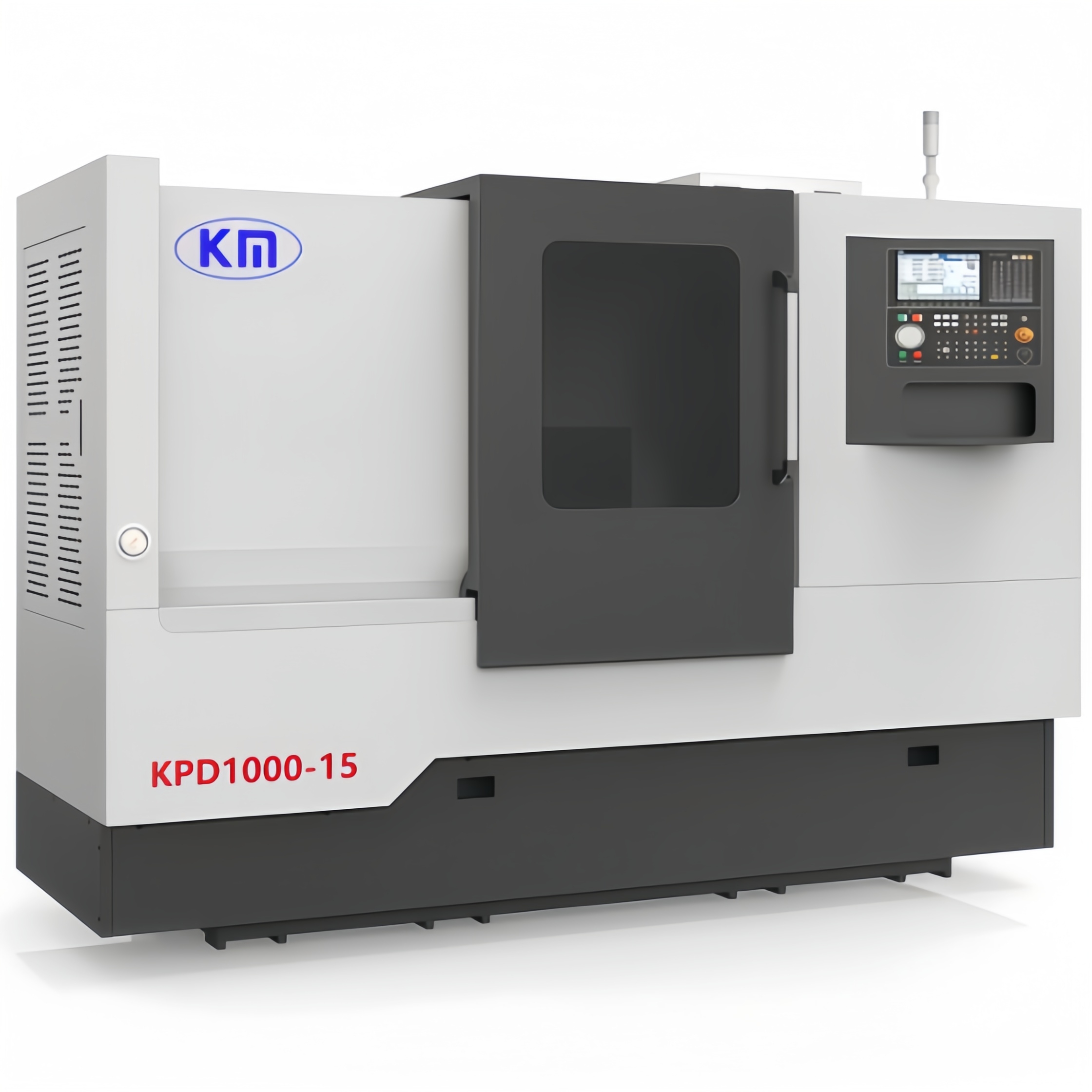

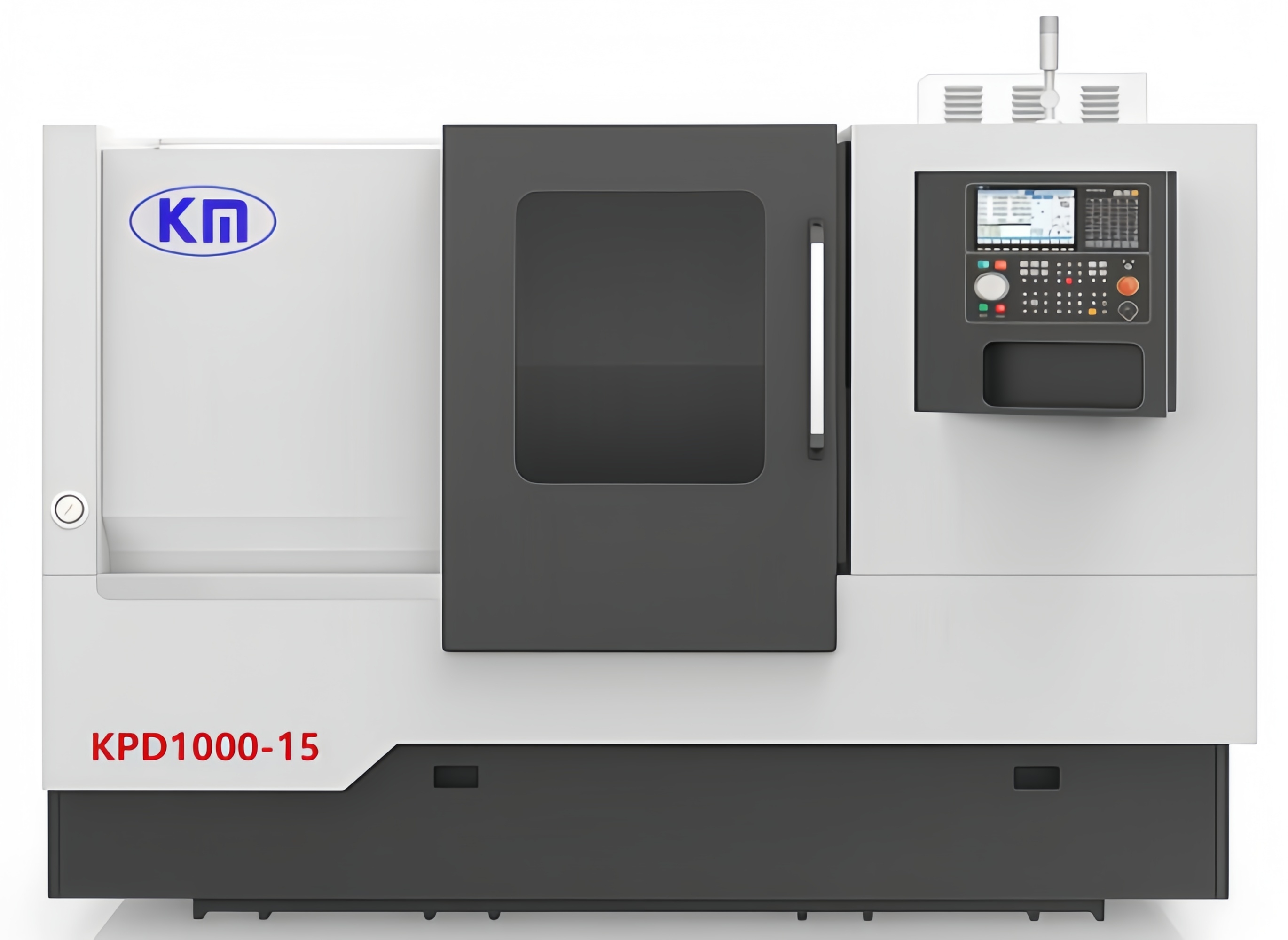

| Technical parameters | Unit | KPD1000-15 | Remark |
| Machining diameter range | mm | φ30-120 | Modifiable |
| Machining length range | mm | 400-1000 | Modifiable |
| Center hole model specifications | mm | Type A/B/C/R | φ≥2.5 |
| Special function milling, drilling, tapping | mm | M3-20 | - |
| Maximum one-sided milling | mm | 5 | Standard round bars |
| Spindle speed range | r/min | 0-2000 | |
| Machine tool control mode | Beijing KND / Juxin System / Guangshu / Siemens / Fanuc / other CNC systems | Available Options | |
| Machine tool total power | Kw | 15/25 | |
