● Bed: 45°integral casting bed
● Fixture: Double V-type hydraulic separating auto-centering and auto-positioning fixture, easy to adjust, accurate and reliable clamping.
● Control system: CNC digital control, all movements and auxiliary actions of the machine are controlled by CNC programs.
● Apply：Less than 3 meters Medium Shaft Components
● Dimensions (length * width * height): 7.2m * 2.0m * 1.9m
● Weight：15T

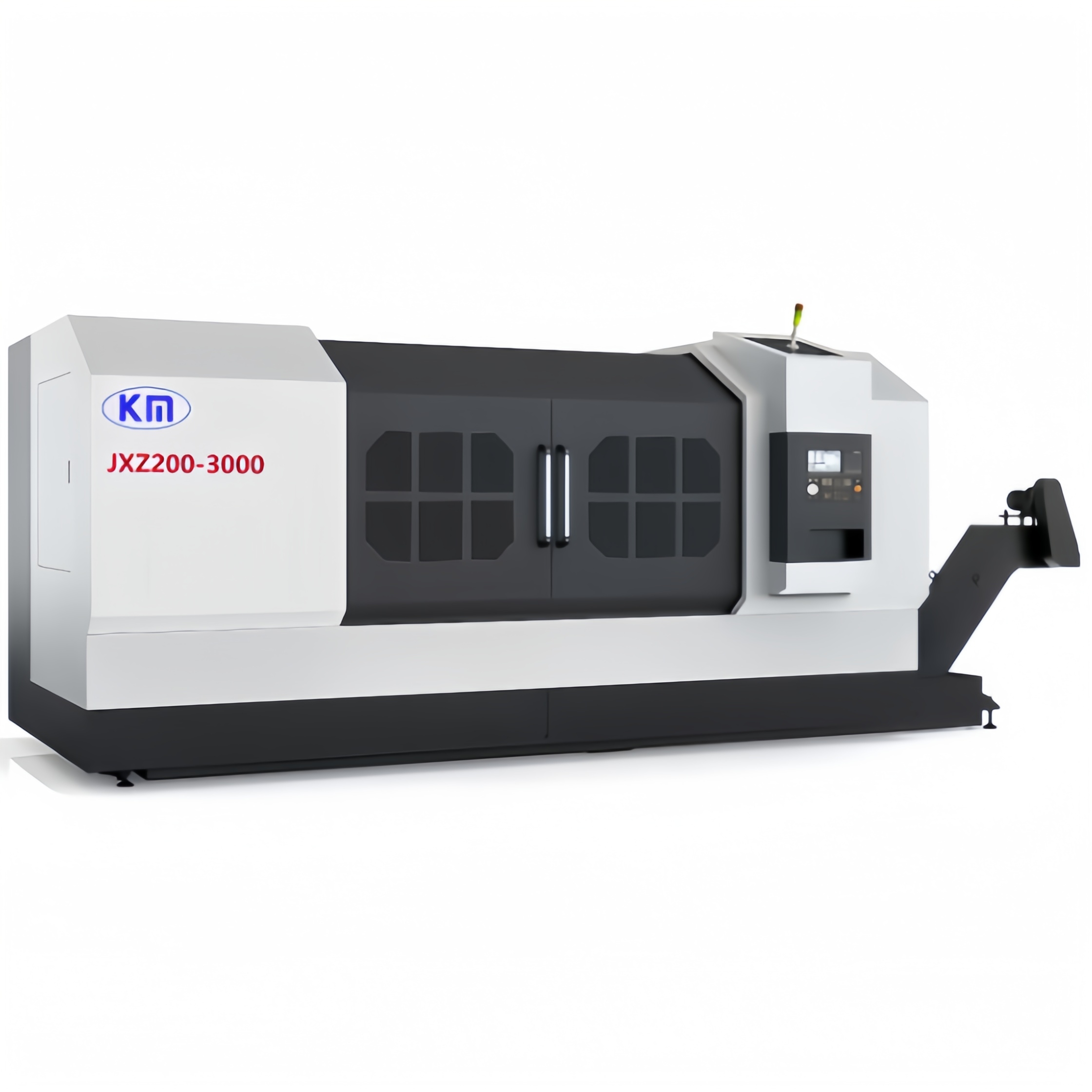

| Technical parameters | Unit | JXZ200-3000 | Remark |
| Machining diameter range | mm | φ50-200 | Modifiable |
| Machining length range | mm | 600-3000 | Modifiable |
| Center hole model specifications | mm | Type A/B/C/R | φ≥2.5 |
| Special function milling, drilling, tapping | mm | M3-20 | Optional power up to M35 |
| Maximum one-sided milling | mm | 5 | Standard round steel |
| Spindle speed range | r/min | 0-2000 | |
| Machine tool control mode | Beijing KND / Juxin System / Guangshu / Siemens / Fanuc / other CNC systems | Available Options | |
| Machine tool total power | Kw | 30 | |
