● Special features: automated matching possible.
● Weight：2.3t.
● Overall Dimensions：2.4/1.3/1.7.

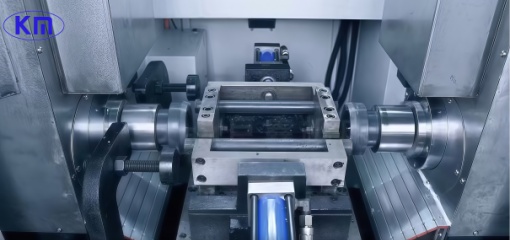

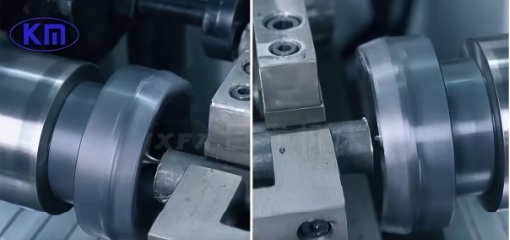

● Main Functions: One time can be processed shaft end face a variety of process requirements or other two end face processing milling, drilling center hole, set of turning cylindrical, scraping and punching the center hole and other functions.
.jpg)
| Technical parameters | Unit | JX-Z500 | Remark |
| Machining diameter range | mm | φ14-50 | Modifiable |
| Machining length range | mm | 70-500 | Modifiable |
| Center hole model specifications | mm | Type A/B/C/R | φ≥2.5 |
| Maximum one-sided milling | mm | 5 | Modifiable |
| Spindle speed range | r/min | 0-2000 | |
| Machine tool control mode | Beijing KND / Juxin System / Guangzhou CNC / Siemens / Fanuc / other CNC systems | Available Options | |
| Machine tool total power | Kw | 15/18 | |
